Piston Fillers

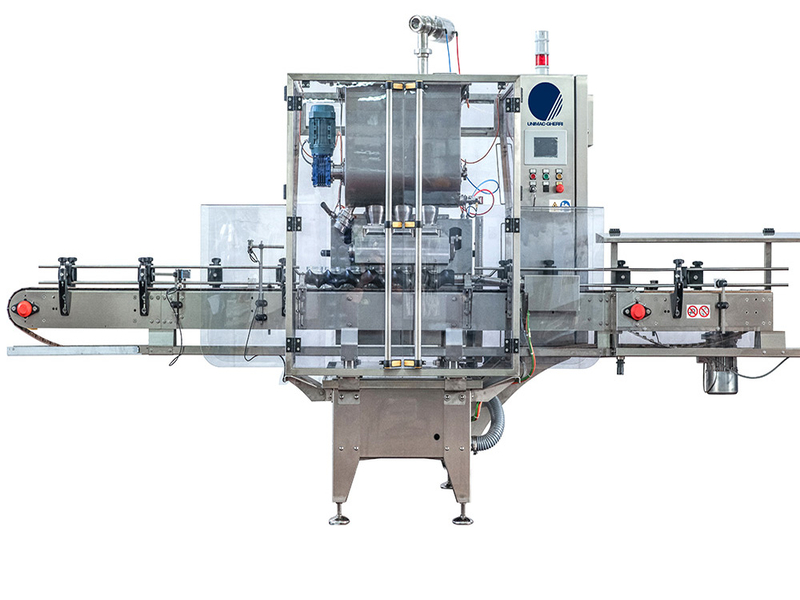

MODELS PF2T AND PF3T – LINEAR FILLERS WITH 2 OR 3 FILLING HEADS

Linear volumetric piston fillers for dense and semi dense products like: jams, tomato paste, ketchup, sauces with meat or vegetables, baby food, pate, marmalades.

Memorization of parameters and recipes
Easy cleaning and high sanitation level
Simple use and ergonomic controls
Flexible product change and quick format change-over adjustments.

• Stainless steel structure, easy cleaning, adjustable height.
• Machine easily accessible for maintenance.
• Product hopper with three-way pneumatic valve, controlled by level probes.
• No-can no-fill device.
• Overaccumulation photocell at outfeed.
• Safety guards complying with CE regulations
  Motorised conveyor belt with gear motor controlled by variable frequency drive.
• Semiautomatic cleaning cycle with special cylinder cleaning system (cleaning cycle with external basin available as option).
• Stainless steel electric control cabinet with PLC and Touch Screen panel.
• Linear models with 2 or 3 filling heads.
• Speed 5500 cph with homogeneous product on 300gr size with 3 filling cylinders.
• Parts in contact with products made of Aisi 316 stainless steel or other material suitable for the food industry

Linear models with 2 or 3 filling heads.

Speed 5500 cph with homogeneous product on 300gr size with 3 filling cylinders.

MODELS PF4L – PF5L – PF6L – LINEAR FILLERS WITH 4 – 5 OR 6 FILLING HEADS

More information given on request.
