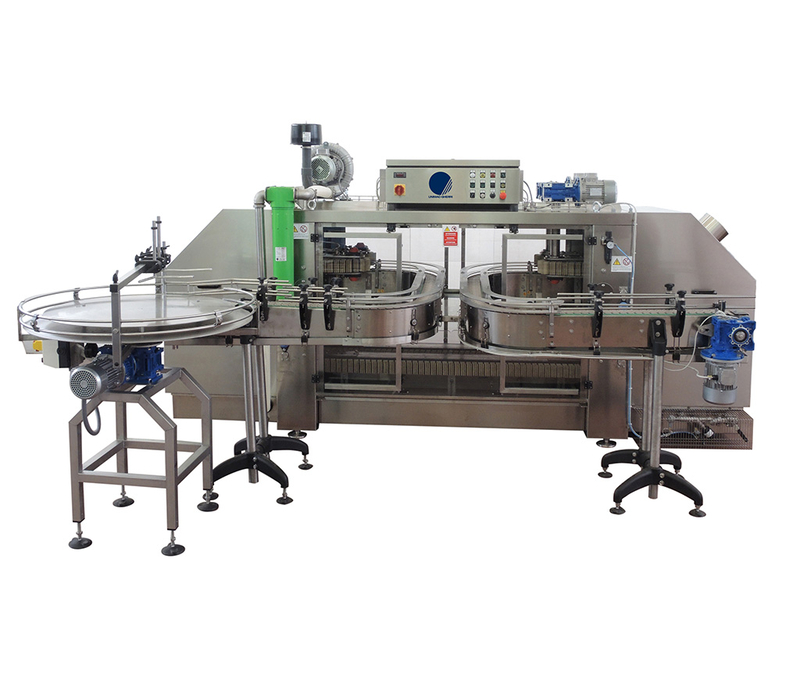

GG75 Cleaning Machine

GG75 is suitable for cleaning empty containers (tinplate cans, glass jars, glass bottles, plastic containers).
Range of containers : diameter 30 to 160 mm – height 50 to 280 mm.
Different treatments available (by air – steam – hot water).
Max. speed 12.000 with 500cc containers.

• Versatile machine suitable to clean any container sizes without any additional costs
• Quick size change-over only by adjustments, with no need of additional parts
• The infeed and outfeed conveyors can be positioned at any side of the machine to suit the line lay-out
• Different treatments available (by air – steam – hot water)
• Full accessibility to the machine inside
• Easy cleaning and maintenance
• Stainless steel structure
• Guards made of polycarbonate
• Pre-heating treatment with steam
• Centrifugal fan with filter for treatment with filtered air
• Conveyor with pads for containers pick-up and overturning with gear motor controlled by frequency converter
• 2000mm-long infeed conveyor with stainless steel structure, driven by gear motor controlled by frequency converter. Chain made of acetalic resin.
• 2000mm-long outfeed conveyor with stainless steel structure, driven by gear motor controlled by frequency converter. Chain made of acetalic resin.
• Ctainless steel electric control panel with low tension controls.

GG75 is suitable for cleaning empty containers (tinplate cans, glass jars, glass bottles, plastic containers).

Range of containers : diameter 30 to 160 mm – height 50 to 280 mm. Max. speed 12.000 with 500cc containers.
